Project Overview

Bolton Council commissioned electrical infrastructure upgrades at the Wellspring Building to support increased capacity and resilience of supply. The project involved the installation of a new 800A power supply, new switched fused isolators, a 1250A main switchboard, heavy-duty containment systems, and new high-capacity cabling.

Bolton Council Wellspring Building Main Installation

Scope of Works

  • Installation of new 800A switched fused isolators
  • Installation of new 1250A main switchboard for improved distribution capacity
  • Installation of heavy-duty ladder rack containment system
  • Supply and installation of 400mm² AWA armoured cables
  • Termination of all high-capacity power cables to isolators and switchboard
  • Testing, commissioning, and certification of the new supply system

Installation Progress

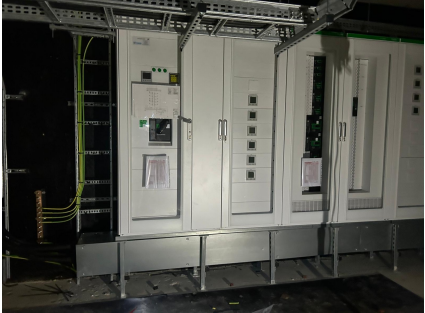

Bolton Council Wellspring Building Main Installation

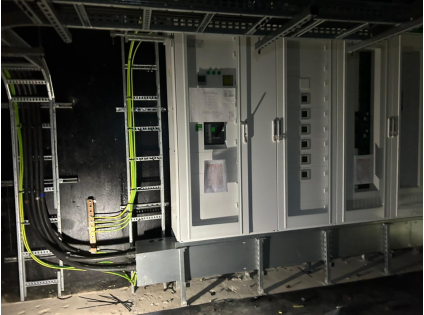

Bolton Council Wellspring Building Main Installation

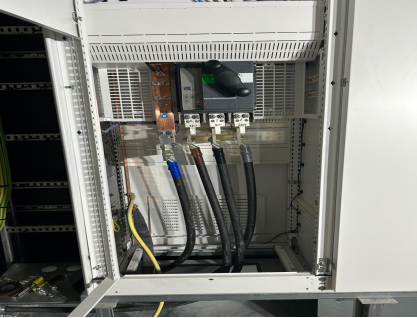

Bolton Council Wellspring Building Main Installation

Containment and Cable Installation.

Bolton Council Wellspring Building Cable Installation
Bolton Council Wellspring Building Cable Management
Bolton Council Wellspring Building Containment System

Main Switchboard Installation .

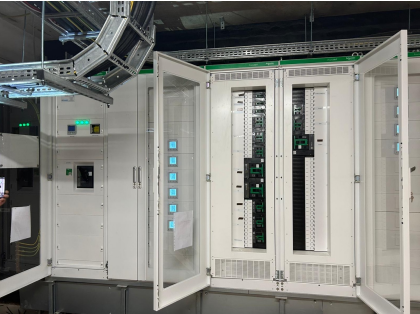

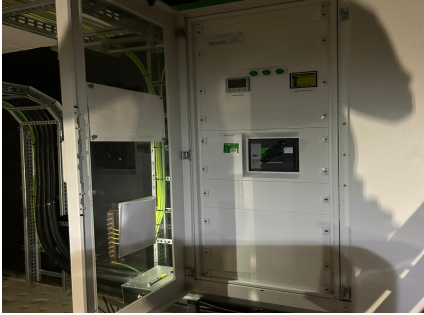

Bolton Council Wellspring Building Cable Installation

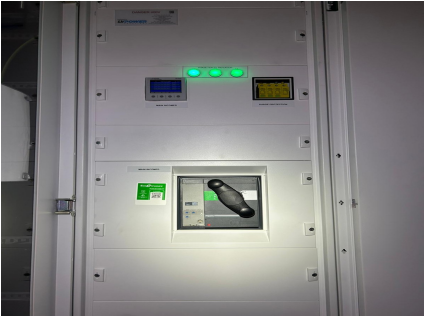

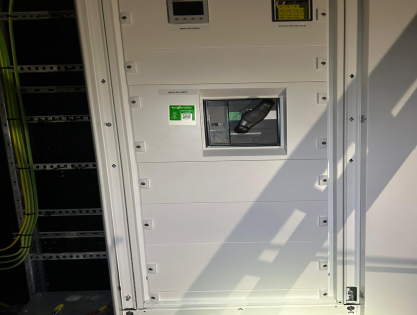

Bolton Council Wellspring Building Cable Management

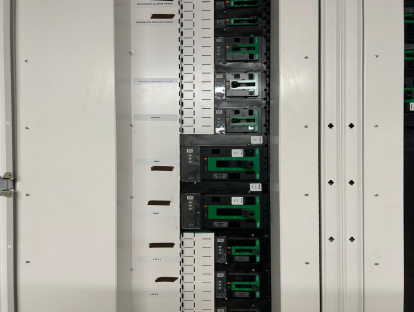

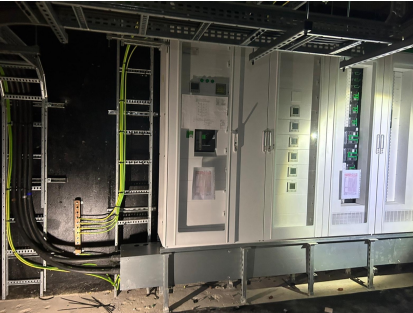

Bolton Council Wellspring Building Containment System

Testing and Commissioning:

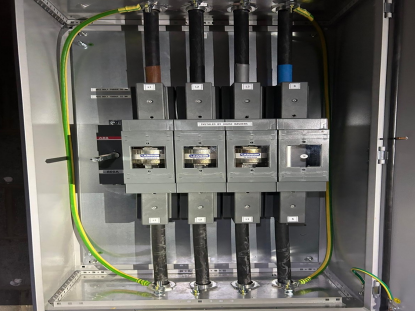

Bolton Council Wellspring Building Testing

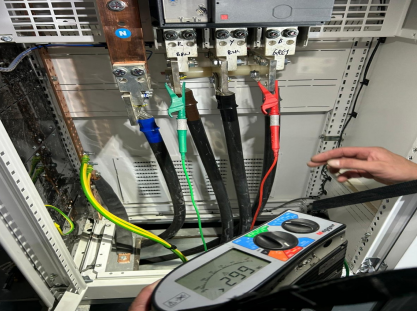

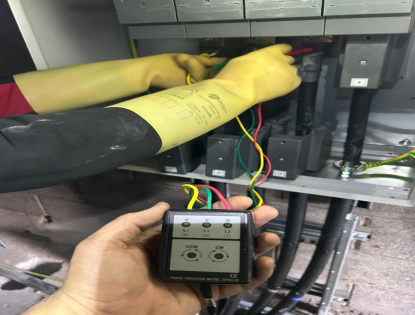

Bolton Council Wellspring Building Commissioning
Bolton Council Wellspring Building Commissioning

Conclusion

The new 800A supply and 1250A switchboard installation at Bolton Council's Wellspring Building provides a reliable, high-capacity distribution system to meet present and future demand. With robust containment, heavy-duty cabling, and professional commissioning, the project ensures compliance, resilience, and operational efficiency.
